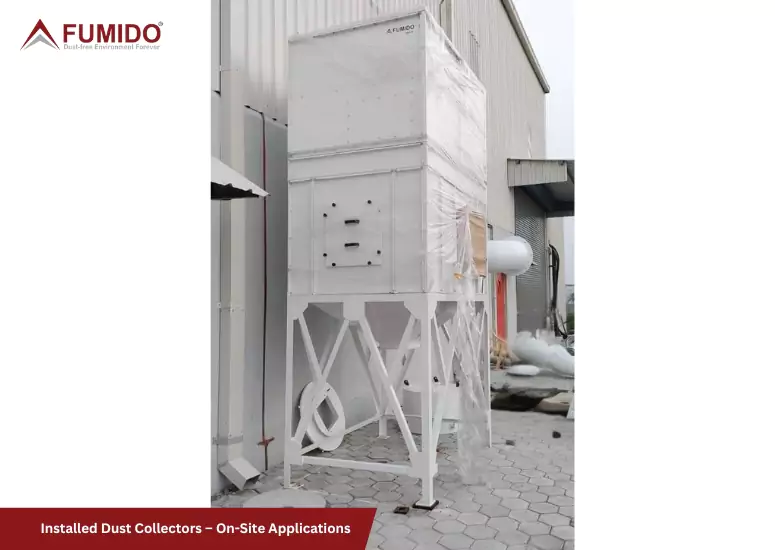

Cartridge Dust Collectors
Cartridge dust collectors are advanced air filtration systems engineered for heavy-duty industrial environments and applications. They are designed to effectively capture and contain airborne particulates, ensuring a clean and safe workspace. Cartridge dust collectors can handle a wide variety of contaminants, including:
Dusts: Fine particulates, powdery substances, and hazardous dusts from various industrial processes.
Fumes: Gaseous emissions, vapors, and smoke from welding, cutting, and other high-temperature operations.
Mists: Liquid mists and aerosols generated during machining, painting, or coating processes.
Technical Specification
| DDU FilterMax | 2-10 | 3-15 | 5-30 | 7-30 | 7-45 | 10-60 | 12-80 | 15-100 |
|---|---|---|---|---|---|---|---|---|
| Motor (kW) | 2.00 | 3.00 | 5.00 | 7.50 | 7.00 | 10.00 | 12.50 | 15.00 |
| Static Pressure (mmwg) | 150 | 200 | 250 | 400 | 250 | 250 | 250 | 250 |
| Air Flow Rate (CMH) | 1900 | 2000 | 2400 | 2000 | 3500 | 5000 | 7000 | 9000 |
| Filtration Area (m2) | 10 | 15 | 30 | 30 | 25 | 60 | 80 | 100 |

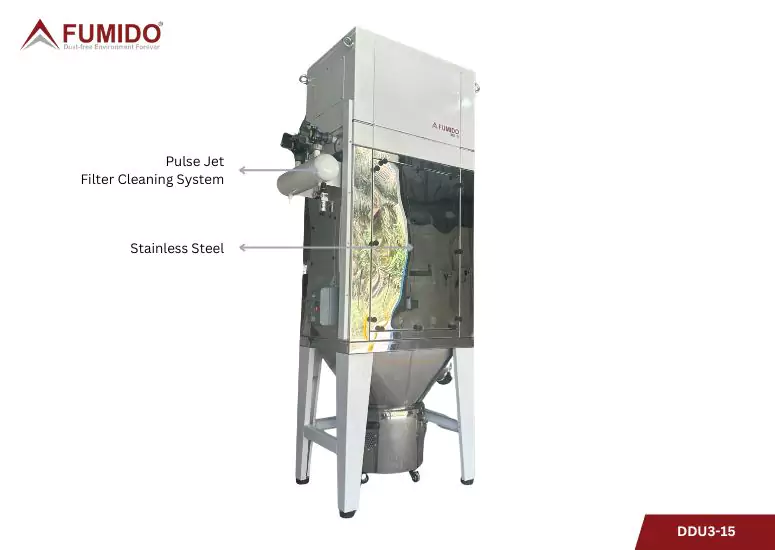

- Optimized online pulse-jet filter cleaning system
- Rugged steel construction for industrial durability
- Compact footprint, space-saving design
- Quick and easy filter maintenance access
- Smart Display, PLC with dust bin sensor (Pro-series)
- Pneumatic Dampers, Manual Dampers
- Customized solutions for specific requirements
- Food-grade, Flame-proof, anti-static options
- Superior filtration across diverse applications
- Explosion Vent, RAV, Sliding Dampers – Optional
- Fire Deduction & Suppression Systems
- Silencer with Chimney – Optional
Applications
- Pharmaceutical Processing machines.
- Powder handling ( Loading, Mixing, Stirring, Bagging, Weighing, Bag Sealing, etc.)
- Cutting, Belt Grinding, Swing Grinding, Surface Grinding, Buffing, Polishing, Sandering, Drilling, Powder Processing equipment
- Ceramic Industries, Paper Sliting, Plywood, Cement, Rubber, Coffee, Tea, Sugar, Spices & Other FMCG Industries.
- Conveyors, Silo Areas, Crushers, Shifter Machines, Dumping Statitions, Ball Mill Areas, Charging Areas, Loading Stations, Final Raw Material Collections Area, Weighing Stations, Pouch Packing, Bag Packing, Coffee/Tea Packing Machines etc.
